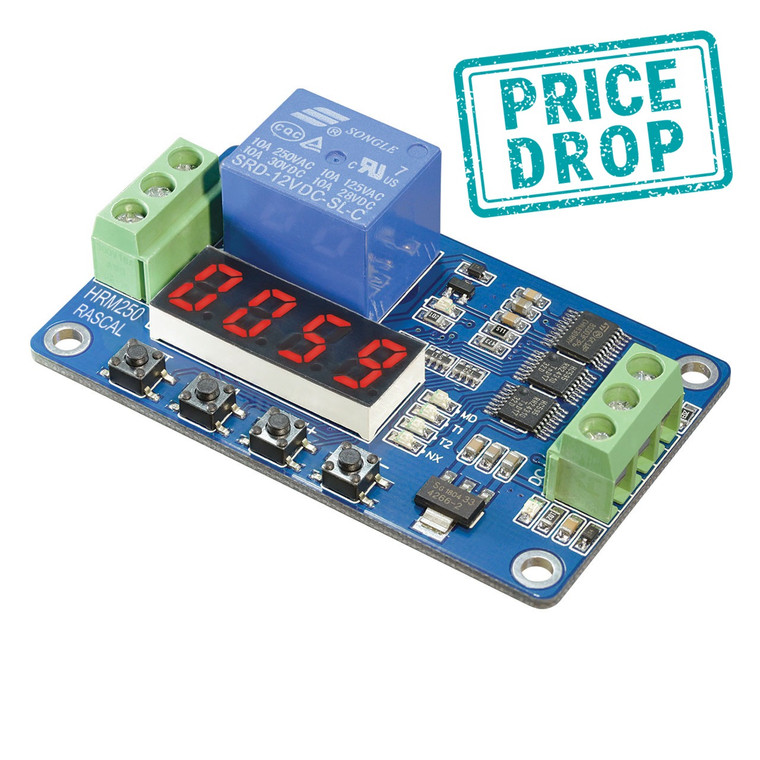

Handy Rascal 10 Function Relay

Handy Rascal
SKU:
HRM250
Availability:
Usually ships the same or next day
(No reviews yet)

Versatile 10 Function Relay Module

  • Adjustable Delay - 0.005s To 270hrs
  • 2x Built-in Timers
  • 10 Delay, Loop & Continuous Functions
  • Built-in LED Display
This versatile relay module has two independent timers built in to it so it can be set up to switch the relay contacts on and off in a variety of ways.
Current Stock:

This versatile relay module has two independent timers built in to it so it can be set up to switch the relay contacts on and off in a variety of ways. With each timer being adjustable from 0.005s up to 270hrs (over 10 days!)

It’s a really versatile little rascal!! It has a total of 10 functions which include the useful delay on and delay off functions, perfect for sounders, gates, doors and lights. A built in LED display allows the user to set up the device to the function they require.

The HRM250 has a non-volatile memory so once set up if the power is removed it will remember its settings.

10 Handy Functions !

  1. Delay switch on
  2. Delay switch off
  3. Delay switch on followed by delay switch off
  4. Delay switch off followed by delay switch on
  5. Continuous loop starting with relay off then on
  6. Continuous loop starting with relay on then off
  7. Set number of ‘N’ loops starting with relay off then on
  8. Set number of ‘N’ loops starting with relay on then off
  9. Toggle mode - trigger input toggles output
  10. Mimic mode - Relay energizes whenever input trigger present
  HRM250
Relays 1
Input Voltage 12V DC
Output Relay(s) 240V AC 10A
Timers 2 (Built-in)
Delay 0.0005s - 270hrs
Display LED (Built-in)
Dimensions 40 x 65mm
Type:
Relay
