Future-Proof Data Cabling with Enhanced Fire Safety Protection
- LSZH Fire Safety Compliance
- Multi-Gigabit Ready Performance
- UK Quality Assured
- Installation-Friendly Metre Markings
Cat 6 U/UTP LSZH cable with enhanced fire safety. Exceeds Cat6 specs for multi-gigabit networks. UK tested, metre marked, 305m box. Eca fire rated for safe installations.

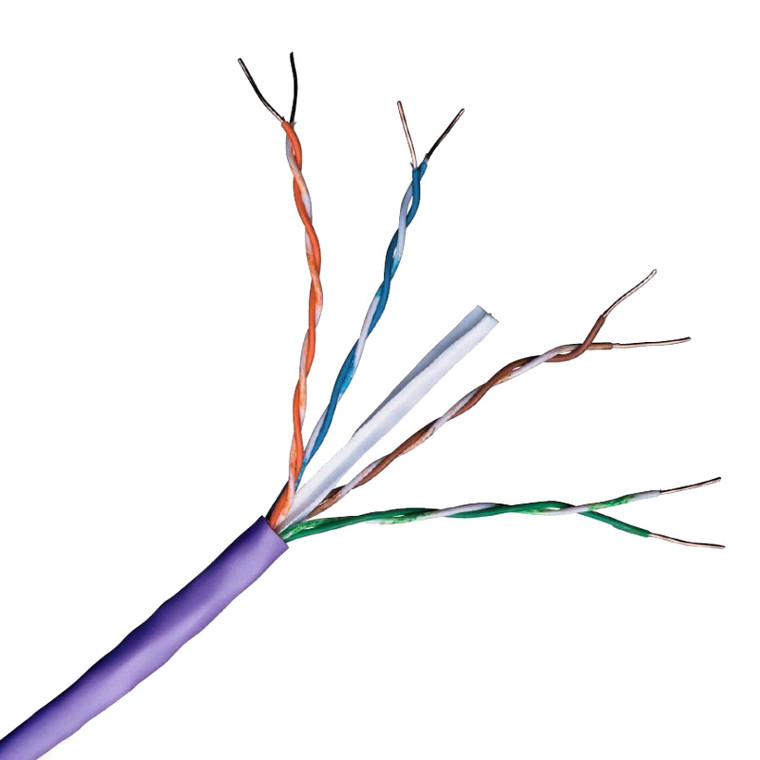

This Cat 6 U/UTP LSZH cable delivers professional-grade network infrastructure with enhanced safety credentials for modern data communication systems. Engineered to exceed Category 6 performance standards, this unshielded twisted pair cable provides reliable, high-speed connectivity for current Ethernet applications while offering headroom for emerging multi-gigabit networks including 2.5Gbp and 5Gbp standards.
The LSZH (Low Smoke Zero Halogen) outer sheath makes this cable ideal for enclosed environments, public buildings, and installations where fire safety is paramount. In the event of fire, the cable produces minimal smoke and no toxic halogen gases, supporting safe evacuation procedures and reducing potential damage to sensitive equipment. The cable meets Eca fire rating requirements, ensuring compliance with modern building regulations.
Quality assurance is built into every metre, with each 305m box individually tested in the UK to verify performance characteristics. UL testing certification provides additional validation of the cable's reliability and durability in demanding network environments. The solid copper conductor construction ensures optimal signal transmission over extended cable runs, making it perfect for structured cabling installations in commercial, educational, and residential applications.
Practical installation features include clear metre marking along the cable length, enabling installers to measure and cut accurately, reducing material waste and speeding up installation times. The 305m box format provides sufficient cable for most installation projects while remaining manageable on site.
Whether upgrading existing network infrastructure or specifying new installations, this Cat 6 U/UTP LSZH cable offers the performance, safety, and quality required for next-generation data networks with complete confidence in long-term reliability.
| CAB602-01 | |
|---|---|
| Inner Conductor | 23 AWG plain copper |
| Insulation | High density polyethylene |
| Construction | 4 twisted pairs cabled together with spline |
| Colour Code | Pair 1: White-Blue/Blue Pair 2: White-Orange/Orange Pair 3: White-Green/Green Pair 4: White-Brown/Brown |
| Sheath | Low Smoke Zero Halogen |
| RAL Colour | Violet - 4001 |
| Overall Diameter (mm) | 5.5 +/- 0.2 |
| Weight (Kg/Km) | 39.1 (PVC/PE)/41.2 (LSZH) |
| Min. Bending Radius Installation (mm) | 50 |
| Min. Bending Radius Installed (mm) | 25 |
| Conforms To | ANSI/TIA-568-C, Cenelec EN50173 and ISO 1180 |
| LSZH Jacket Conforms To | IEC 60332-1, IEC 61034 and IEC 60754 |
| Euroclass Rating | Eca |
| DC Resistance | <9 Ω/100 m |
| Insulation Resistance | >5000mΩ*km |
| Capacitance Unbalance (pair to ground) | <5.6nF/100 m |
| Velocity Ratio (NVP) | 69% |
| Operating Temperature Range | -20˚C to +60˚C |
| Installation Temperature Range | 0˚C to +50˚C |
| Characteristic Impedance @1-250 MHz | 100 Ohm +/- 15 Ohm |
- Type:
- CAT6
- Length:
- 305m
- Technology:
- IP
- Colour:
- Purple
