4K Pro CCTV Test Monitor for TVI, CVI, AHD & Analogue

  • Supports 4K UHD
  • Co-axitron Built-in
  • Pro High-End Model
  • Dual PoE Ports

The superb LCD400K is a 4K CCTV test monitor for professional installers. Boasting wide CCTV compatibility with IP, TVI, CVI, AHD and legacy analogue cameras.

Current Stock:

The superb LCD400K is a 4K CCTV test monitor for professional installers. Boasting wide CCTV compatibility with IP, TVI, CVI, AHD and legacy analogue cameras.

Beautifully engineered to fit comfortably in the hand when setting up CCTV cameras it feels a class above other CCTV test monitors on the market.

A flip out QWERTY Keyboard makes it easy to enter data into the LCD400K and when you fold the keyboard back it adds strength and protection for when it's back in the van.

Testing IP Cameras is a breeze for the LCD400K, using its built in 48V POE output all you need is one cable between the LCD400K and IP camera, no additional power supplies needed.

Similarly when testing TVI, CVI, AHD or old analogue cameras, the feature packed LCD400K also has a handy 12V output so you can again test and set up these CCTV cameras simply and easily.

The LCD400K has some really great built in tools for the professional installer. It can test for packet loss and even the speed of the network indicating if its 10Mb, 100Mb or a 1Gb network so you can identify bottle necks slowing IP traffic down.

When installing and fitting network cables its easy to mis-crimp a connector and get an open or short, the LCD400K can test for these too. Using its built in TDR cable test function it can also help pinpoint the actual distance it is to the break or cable short. The LCD400K is a really handy little tool, it even features a built in torch!

For network engineers the LCD400K also boast a ping tester and even a network sniff function where it can list all the connected devices on a network and include their IP and MAC address.

Professional CCTV installers often record CCTV images from the cameras as a reference to the quality of the cameras and installation at sign off, it's a good practice for anyone to follow. The LCD400K can record video from CCTV cameras and you can then transfer it to a computer later for filing. It's a great way for professional companies to keep and maintain quality installations.

All in all, the superb LCD400K CCTV test monitor is the perfect tool for installing, commissioning and servicing CCTV equipment in the UK market.

The LCD400K also comes with all of this for FREE!

  • Carry Case & Shoulder Strap
  • Lanyard
  • BNC to BNC Lead
  • 2.1mm DC Power Lead
  • PoE Power Injector & Power Lead
  • RS485 Test Lead
  • Network (Patch) Lead
  • USB-Mini to USB Lead
  • Audio Test Lead
  • Spare Terminal Block
  • Phono-BNC Connectors

Features Of The LCD400K IP and HD CCTV Test Monitor

  LCD400K
Max Resolution 4K Ultra HD
Screen 4" LCD (800x480)
Colour Ratio 16.7m
Backlight Adjustable
Video In IP / TVI / CVI / AHD / CVBS
Video In Connection BNC / RJ45
Video Out TVI / CVBS
Video Out Connection BNC
Video Format PAL / NTSC (Auto Switch)
IP Interface ONVIF 2.4.1 Onwards
Other Protocols RTSP / RTP
Audio Built-In
PC Connection Micro USB
Torch 2x High Power LEDs
PoE Output 48V / 15W
Power Output 12V DC / 2A

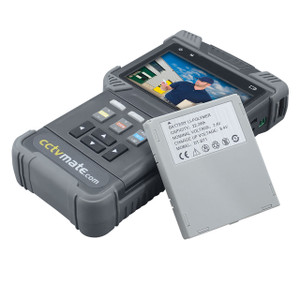

Battery 7.4V Lithium-ion Polymer
Battery Charge Via PoE (PSU Supplied)
Low Battery Indicator Yes
Storage Carry Case Included
Build ABS Plastic / Rubber
Weight 1.6kg
Dimensions (H) 190 x (W) 113 x (D) 37mm
