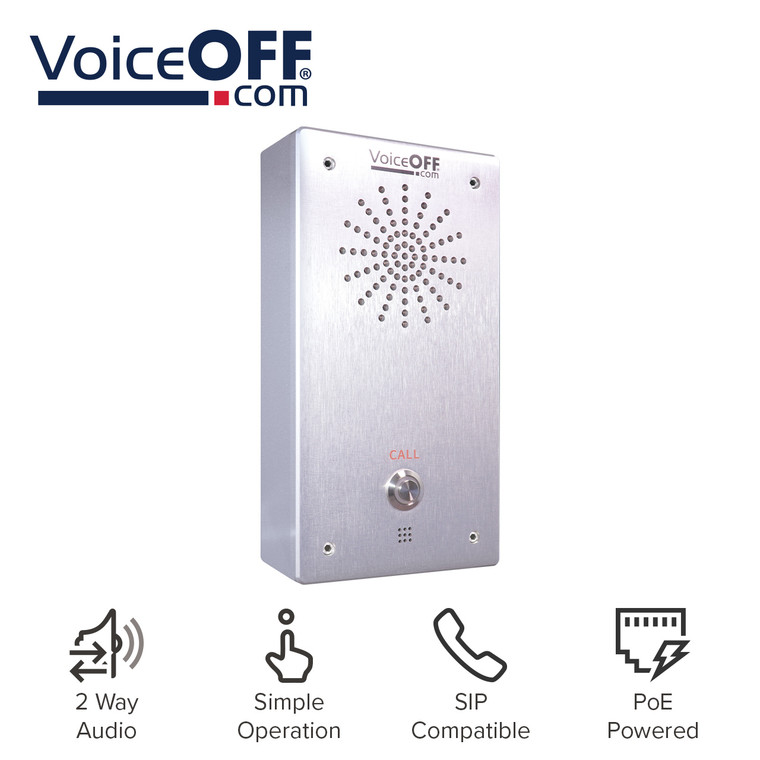

VoiceOFF IP Indoor Intercom with Mic & Speaker - PoE
Professional SIP Intercom with PoE – Vandal-Resistant Communication for Secure Environments
- Vandal-Resistant Construction - Durable 6mm aluminium panel with anti-stab protection and tamper alarm for maximum security in high-risk locations
- Simple PoE Installation - Single-cable deployment delivers both power and data via IEEE 802.3at, with flexible 12-24V backup option
- Crystal-Clear Two-Way Audio - Built-in 3W speaker and microphone enable hands-free communication with line-output for external audio devices
- Universal SIP Compatibility - Standard SIP protocol works seamlessly with major VoIP systems including Yeastar, Asterisk, and Cisco PBX platforms
VoiceOff IP PoE Intercom with vandal-resistant aluminium panel, SIP VoIP compatibility, two-way audio, tamper alarm & relay I/O for secure facilities.
The VoiceOff VOX-INTC-1110 IP Indoor Intercom delivers professional-grade communication and security for demanding environments including banks, schools, prisons, and exhibition centres. Available in single or dual-button configurations, this robust intercom combines vandal-resistant construction with advanced network connectivity for reliable facility-wide communication.
Built with a heavy-duty 6mm aluminium panel featuring anti-stab protection and security screws, the unit resists tampering and vandalism whilst the integrated tamper alarm provides immediate security alerts. The hands-free communication system features a powerful 3W built-in speaker and microphone, with line-output connectivity supporting external active speakers or earphones for enhanced audio flexibility.
Power over Ethernet (PoE) technology via IEEE 802.3at simplifies installation by delivering both power and data through a single network cable, eliminating the need for separate power supplies. For sites with specific power requirements, the intercom also accepts 12-24V external power, ensuring adaptable deployment across diverse facilities.
The VOX-INTC-1110 excels in complex network environments with adaptive data transmission optimised for narrow bandwidth networks, ensuring reliable performance even under challenging conditions. Standard SIP protocol compliance enables seamless integration with existing VoIP infrastructure including Yeastar, Asterisk, Cisco, and other major SIP PBX systems.
Advanced functionality includes relay I/O interfaces for system linkage and access control integration, offline calling capability with pre-defined targets configured via web UI, and one-press calling with targets managed through dedicated software. Remote management capabilities and online upgrade functionality ensure the system can evolve with changing facility requirements.
Whether securing financial institutions, managing visitor communication in educational facilities, or controlling access in correctional environments, the VoiceOff VOX-INTC-1110 provides the durability, flexibility, and performance demanded by professional security installations.
| VOX-INTC-1110 | |
|---|---|
| AUDIO | |
|
Audio Sampling & Bit Rate
|
22.05KHz / 16bit / 8kbps~320kbps
|
| Built-in Speaker |
3W / 8Ω
|
|
S/N (Signal-to-Noise) Ratio
|
Broadcast Speaker: 81dB / Broadcast Line: 88dB / Line In - Record Out: 82dB
|
|
Frequency Response
|
50Hz~20KHz ±3dB
|
|
Input Sensitivity
|
Line: -6dB
|
|
THD (Total Harmonic Distortion)
|
<1%
|
|
NETWORK
|
|
|
Network Interface
|
1x RJ45 Ethernet Port (10BASE-T / 100BASE-TX)
|
|
Network Protocol
|
TCP/IP / UDP / ARP / ICMP / IGMP / SIP / HTTP / FTP
|
|
Configuration Method
|
Web Interface
|
|
POWER
|
|
| Power Supply |
24V DC 1A / PoE IEEE802.3af
|
| Consumption |
≤3W (Standby)
|
| PROPERTIES | |
| Mounting |
Surface
|
| Operating Environment |
Dry Indoor Locations Only
|
| Operating Temperature |
-20℃~+60℃
|
| Operating Humidity |
≤90% RH non-condensing
|
| Build |
Faceplate - Aluminium Alloy / Backbox - Steel
|
| Finish | Silver |
| Dimensions | (h) 191 x (w) 101 x (d) 46mm |
