Simple, Reliable 4K Wireless Transmission with IR Control
Coming Soon - Estimated Shipping Date 16th Jun 2025
- 4K wireless transmission up to 50m
- IR extension for remote control at the receiver
- Pair up to 4 receivers to a single transmitter
- HDMI loop-through at the transmitter.
The HDmitter 4K combines installation flexibility and reliability, providing your customer with a premium wireless solution that eliminates cable constraints without compromising on performance or control capabilities.
The HDmitter 4K delivers crystal clear wireless video transmission with integrated IR extension, eliminating the need for complex cable installations.
Designed specifically for trade professionals, this complete solution enables seamless 4K content distribution with exceptional reliability across distances up to 50 meters, all while maintaining IR control of your source device.
Key Benefits:
- Wireless 4K Excellence: Transmit pristine 4K video and audio wirelessly up to 50 meters through walls and obstacles
- Simplified Installation: Eliminate hours of cable routing while maintaining professional-grade performance
- Multi-Display Configuration: Connect a single source to up to 4 receivers simultaneously for efficient content distribution
- IR Remote Control: Integrated IR extension provides control of source equipment from any receiver location
- Enhanced Security: Keep NVRs and DVRs in secured locations while maintaining complete access and functionality
- HDMI Loop-Through: Connect local displays at the source while simultaneously distributing content wirelessly
- Intelligent Interference Management: SSID pairing and channel switching ensures reliable performance in multi-unit installations
- Superior Performance: Engineered with advanced interference protection and ultra-low latency
Need USB Control?
Check out the HDmitter 4KVM here!

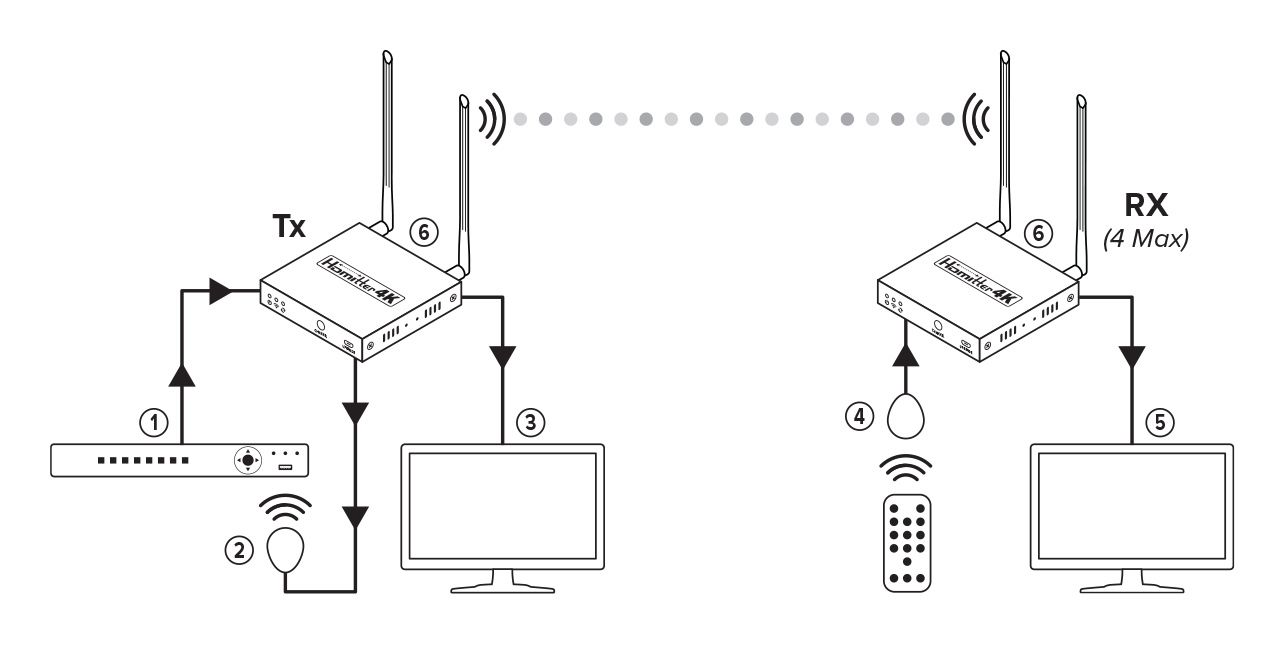

How It Works
- Connect the source device to the HDMI IN socket of the Transmitter (Tx) with a HDMI cable
- If you are using the IR extender function connect the IR Transmitter Extension Cable to the IR OUT socket of the Transmitter (Tx)
- When using a display device at source device this is connected to the HDMI OUT socket of the Transmitter (Tx) with a HDMI cable
- If you are using the IR extender function connect the IR Receiver Extension Cable to the IR IN socket of the Receiver (Rx)
- Connect your display device to the HDMI OUT socket of the Receiver (Rx) with a HDMI cable
- Connect the power supplies included to the DC 5V socket on the Transmitter (Tx) and Receiver (Rx) units and power up
HDMIT450 | |
---|---|
Power Supply | |
Voltage/Current | DC 5V / 2A |
Consumption | TX ≤ 5W / RX ≤ 4W |
HDMI | |
HDMI Version | HDMI 2.0 |
HDCP Version | HDCP 1.4 / HDCP 2.2 |
Performance | |
Max. Transfer Rate | 18Gbps |
Resolution | 4096x2160@24/30/50/60Hz / 3840x2160 (24/30/50/60Hz) / 1080P (50/60Hz) / 720P (50/60Hz) / 1920x1200 / 2560x1440 |
TMDS Signal | 0.7~1.2Vp-p (TMDS) |
DDC Signal | 5Vp-p (TTL) |
Transmission | |
Wi-Fi Frequency | 5.18~5.24GHz |
Distance | 1:1 ≤50m / 1:2 ≤30m / 1:3 ≤20m / 1:4 ≤15m |
Latency | 4K: 130~220ms / 1080P: 70~120ms |
Pairing | One-to-One / One-to-Many (4 Max) |
SSID Pairing | Supported |
Protection | |
ESD | 1A Contact discharge level 3 / 1B Air discharge level 3 / IEC61000-4-2 |
IR Performance | |
Infrared Frequency | 20~60kHz |
Receiving Range | ≤ 5m |
Operating Environment |
|
Working Temp. | -20~60ºC |
Storage Temp. | -30~70ºC |
Humidity | 0~90% RH |
Physical Properties |
|
Colour | Black |
Build | Metal Alloy |
Net Weight | TX: 353g / RX: 346g |
Dimensions (Tx & Rx) | (h) 20.6mm x (w) 125mm x (d) 115mm |
- Transmission Distance:
- 50m
- Type:
- HDMI
