Zip Co-ax 2MP Smart NiteDevil PTZ 4in1 33x Zoom
ZIPHigh Performance Compact PTZ with Lowlight NiteDevil Technology
- 33x Optical Zoom / 31x Digital Zoom
- HD 2MP - TVI, CVI, AHD & CVBS
- Compact Size in a Stunning Gloss Finish
- Co-axitron & RS485 Control
Previous code: PTZM500W/B is now PTZ201W/B
High speed PTZ with all the features needed for more demanding retail and commercial applications.
With a 33x Optical Zoom and superb NiteDevil low light technology, this PTZ is feature packed yet still measures only 17cm in diameter !
The 4-In-1 TVI, CVI, AHD and analogue output makes it a great choice for both new installs or as a replacement or addition onto an existing system.
Capture broadcast quality 1080p HD images with the 2.1 Mega Pixel sensor. The PTZ module allows you to zoom right in while maintaining a HD image with its 33x optical zoom capabilities. There's also an analogue output for capturing 700TVL images on legacy systems.
The true day/night mechanical IR cut filter ensures the camera's sensor receives the optimum amount of IR light available day and night. The filter sits in place during the day preventing over saturation which results in colours being displayed incorrectly. At night the filter is removed so that the sensor receives as much light as possible creating the best quality image possible.
At night the PTZ's 8 IR LEDs provide an impressive 140m IR range so you wont miss a thing. The strength of the IRs automatically adjusts inline with the optical zoom so that the image never appears bleached or under lit.
This high speed PTZ pans at up to 200°/sec and tilts at up to 75°/sec. The PTZM500's precision motor enables smooth movement even at maximum zoom. The PTZ also supports 360° continuous rotation, 220 presets, 8 tours, 4 patterns and coaxitron or RS485 control. It also features 4 alarm inputs and 1 alarm output.
The sturdy camera casing is externally rated to IP66 and offers both lightning and surge protection and is available in both gloss black or a gloss white and black combination.
PTZ201B/W | |
---|---|
Image Sensor | 1/2.8" CMOS |
Resolution | 2MP |
Lens Type | 4.6-152mm |
Image Output | 1 Volt Peak-Peak 75 ohm |
Min. Illumination | 0 Lux with LEDs on |
Day/Night Function | Mechanical |
IR LEDs | 8 |
IR Range | Up To 140m |
Input Voltage | 24V AC |
Signal to Noise Ratio | >50dB (AGC Off) |
Video Connection | BNC Socket |
Power Connection | 2.1mm DC Socket |
Backlight Compensation | Selectable |
Operating Temperature | From -20 to 60 deg C |
Optical Zoom | 33x |
Digital Zoom | 31x |
Pre-sets | 220 |
Tours | 8 |
Pan Speed | Up To 200 deg/sec |
Tilt Speed | Up To 75 deg/sec |
Alarm Inputs | 4 |
Alarm Output | 1 |
Wide Dynamic Range | Yes |
Privacy Masking | 24 Zone |

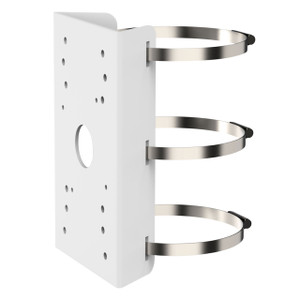

Bracket | Supplied |
IP Rating | IP66 |
Build | Metal |
Dimensions | 370 x 259 x 170mm |
- Technology:
- Co-ax
- Design:
- PTZ
- Lens:
- 4.6-152mm
- Resolution:
- 2MP
- Range:
- Smart
- Type:
- Camera
