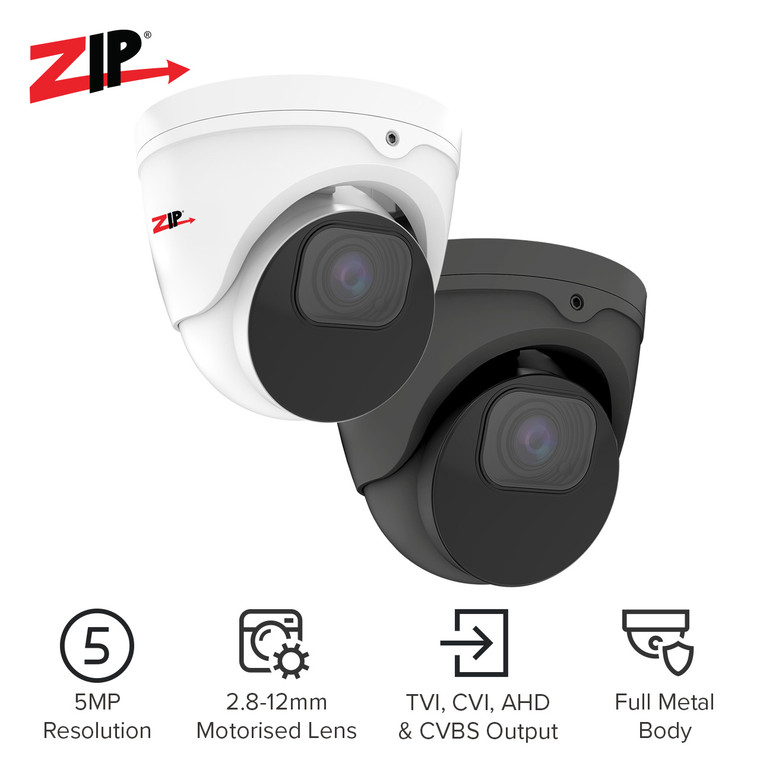

Zip Co-ax 5MP SMART Motorised EYEBALL 2.8-12mm

Zip Co-ax 5MP SMART Motorised EYEBALL 2.8-12mm

ZIP
SKU:
GP-CAM2200
Availability:
Usually ships the same or next day
(No reviews yet)

Superb New 4-in-1 IP66 Eyeball Range

  • 2.8-12mm Varifocal
  • Mechanical Filter
  • TVI, CVI, AHD & CVBS
  • Full Metal Body

Previous code: SEE995W/B is now CAM2200W/B

Eyeball cameras are a firm favourite with installers thanks to their versatility, they can be wall or ceiling mounted and made to point in almost any direction. Our new 4-in-1 varifocal eyeball has a brand new IP66 case and great selection of bracket options to get the perfect install.

Current Stock:
Description

Eyeball cameras are a firm favourite with installers thanks to their versatility, they can be wall or ceiling mounted and made to point in almost any direction. Our new 4-in-1 varifocal eyeball has a brand new IP66 case and great selection of bracket options to get the perfect install.

Choose from an extra deep base for easy cabling connections, the wall mount "top hat" style for a near wall mount, the swan neck for classic look or the ceiling bracket for porches, shops, warehouses etc.

The 4-in-1 technology design means you can set the output signal to either TVI, CVI, AHD or CVBS so you can use the one camera on multiple jobs, output selection is as easy as selecting a switch. Built in twin IR arrays provide 40m of night time vision to get 24/7 performance on these new eyeballs.

Available Products

Brackets for Black and White

  • GP-BKT175  Top Hat Bracket for Varifocal Dome/Eyeball
  • GP-BKT172  Deep Base for Varifocal Eyeball
  • BKT200B Black Deep Base for Varifocal Eyeball

Brackets for Black Only

  • BKT182B  Swan Neck Bracket for Varifocal Eyeball
  • BKT187B  Ceiling Bracket for Varifocal Eyeball
Specifications
+ —
  CAM2200W/B
Resolution 5MP
Lens Type 2.8-12mm Varifocal
Image Output TVI / CVI / AHD / CVBS
Day/Night Function Mechanical (True Day-Night)
IR LEDs 2x High Power
IR Range Up to 40m
Input Voltage 12V DC
Current Consumption 130mA / 490mA IR on
Video Connection BNC Socket
Power Connection 2.1mm DC Socket
Protocol UTC (Coaxitron)
IP Rating IP66 For External Use
Build Metal
Dimensions Ø135mm x (H) 127mm
Downloads
Additional Information
Technology:
Co-ax
Design:
Eyeball
Lens:
2.8-12mm
Resolution:
5MP
Range:
Smart
Type:
Camera
