RapidFit RJ45 CAT5 STP Plugs x100
RapidFit
(No reviews yet)
Write a Review
RapidFit
RapidFit RJ45 CAT5 STP Plugs x100
Fit RJ45 Plugs in Under 60 Seconds? Yes You Can with our Superb Rapidfit® Range!

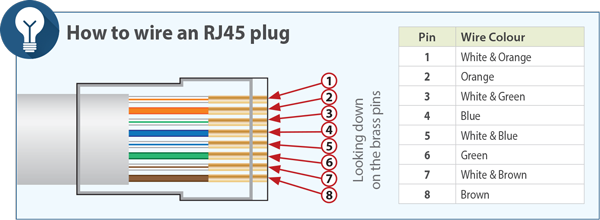

- Easy to See Wire Order
- Saves Hours on Big Jobs
- No Worry About Wire Length in Crimp
- Save Hours Fault Finding Mis-Crimps

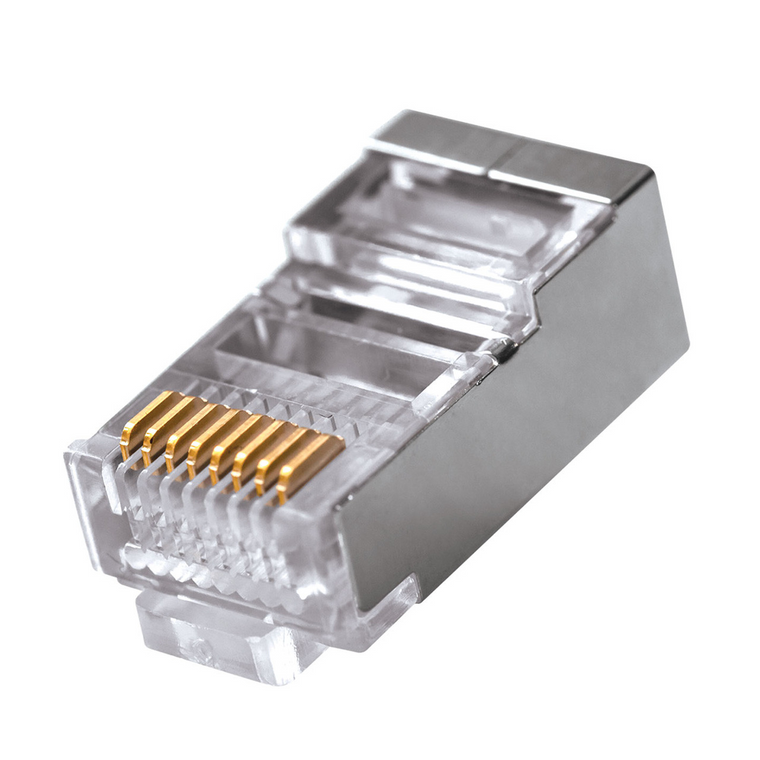

Time saving RapidFit® plugs designed for use with STP CAT5 cable.
The appearance of the RapidFit® plugs may not look too different to an ordinary RJ45 plug but that's about where the similarities end. The genius design of the RapidFit® plug is what sets it apart.

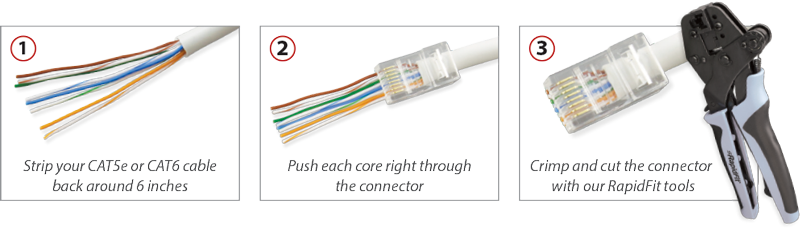

The RapidFit® plugs have a unique open ended design which has two huge benefits. Firstly it lets you push the cores straight through the plug. You no longer have to spend ages stripping and cutting each core to the correct length and hoping they make contact with the pins. Secondly, with the cores sticking out of the plug you can check to make sure they are all in the right order preventing mis-crimps.
Another unique feature is the teeth on the pins inside the plug. When crimped these teeth pierce the insulation on each core and make contact with the copper inside.
| CON835G | |
|---|---|
| Type | Crimp On Plug |
| Style | STP CAT5 (8P8C) |
| Build | Plastic / Metal Shield |
| Dimensions | (H) 13 x (W) 11.5 x (D) 23mm |
